Layout 1 · MWB

VW Crafter MWB campervan layout

VW Crafter / MAN TGE 2017 on · MWB, medium wheelbase

This VW Crafter MWB campervan layout has an 800 mm shower, travel seats, the D1 90L kitchen, a plate cupboard, top lockers, a top shelf and a bed box system across the back.

Fits the VW Crafter and MAN TGE 2017 on, medium wheelbase.

Look round it, change the colours, move or swap any unit, then add it to your basket or book a free measure up with it.

What's in it

Every item in this layout, with its sizes and the options you can have. Pick the colours in the 3D above.

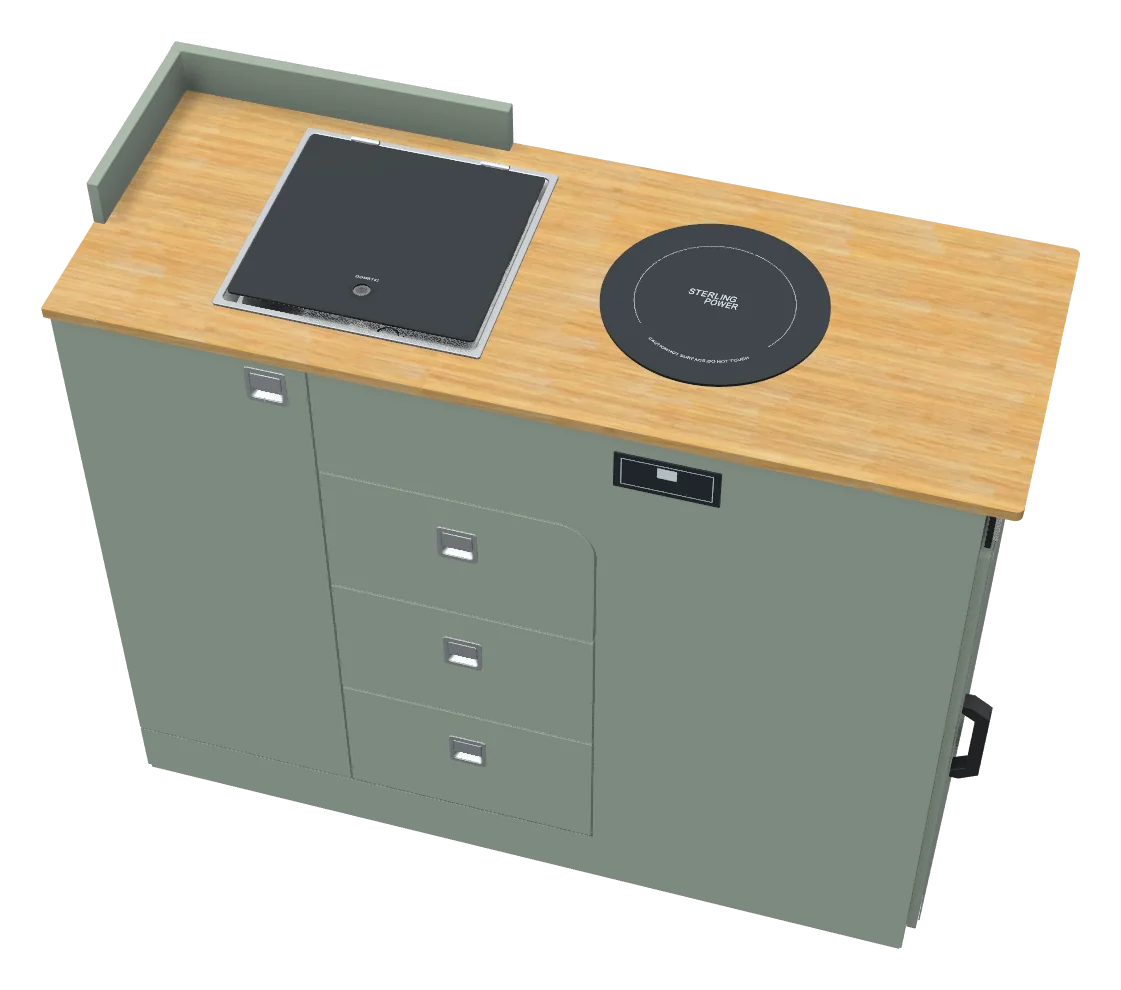

Kitchen D1 90L
1,220 × 450 × 995 mm · Passenger side
Our flagship kitchen unit, designed and built specifically for large vans. All pods feature 18mm furniture-grade board, soft-close hinges, and come fully assembled, ready to bolt in.
See the kitchen pods page
Width
1,220 mm
Depth
450 mm
Height
995 mm
Kitchen
D1 Mini · D1 · D3This layout: D1
Sink
Dometic bowl · Thetford black bowl · Liberty Max sink · No sinkThis layout: Dometic bowl
Hob
Single induction · No hobThis layout: Single induction
Fridge space
50L · 90L · No fridgeThis layout: 90L

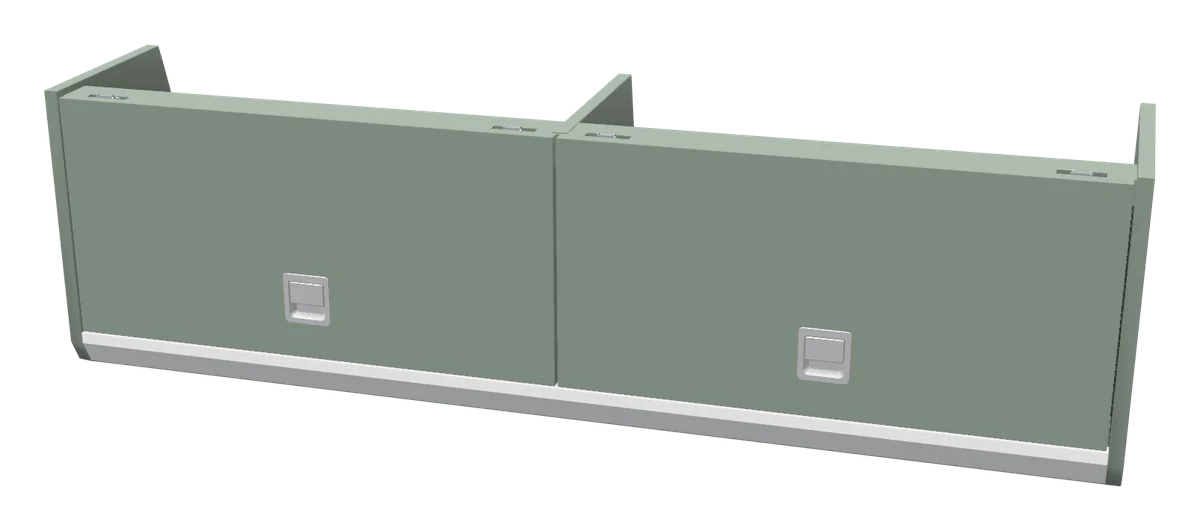

Top locker (passenger side)
1,200 mm · Passenger side
Overhead lockers scribed to fit your specific van: overhead storage cupboards that run along the side wall, above your bed or kitchen.
See the top lockers page
Length
1,200 mm
Length
1,200 mm: rear top lockers come in this one sizeThis layout: 1,200 mm
Truma panel
Fixed 250 mm Truma control panelThis layout: No
Lighting
LED lightingThis layout: LED lighting

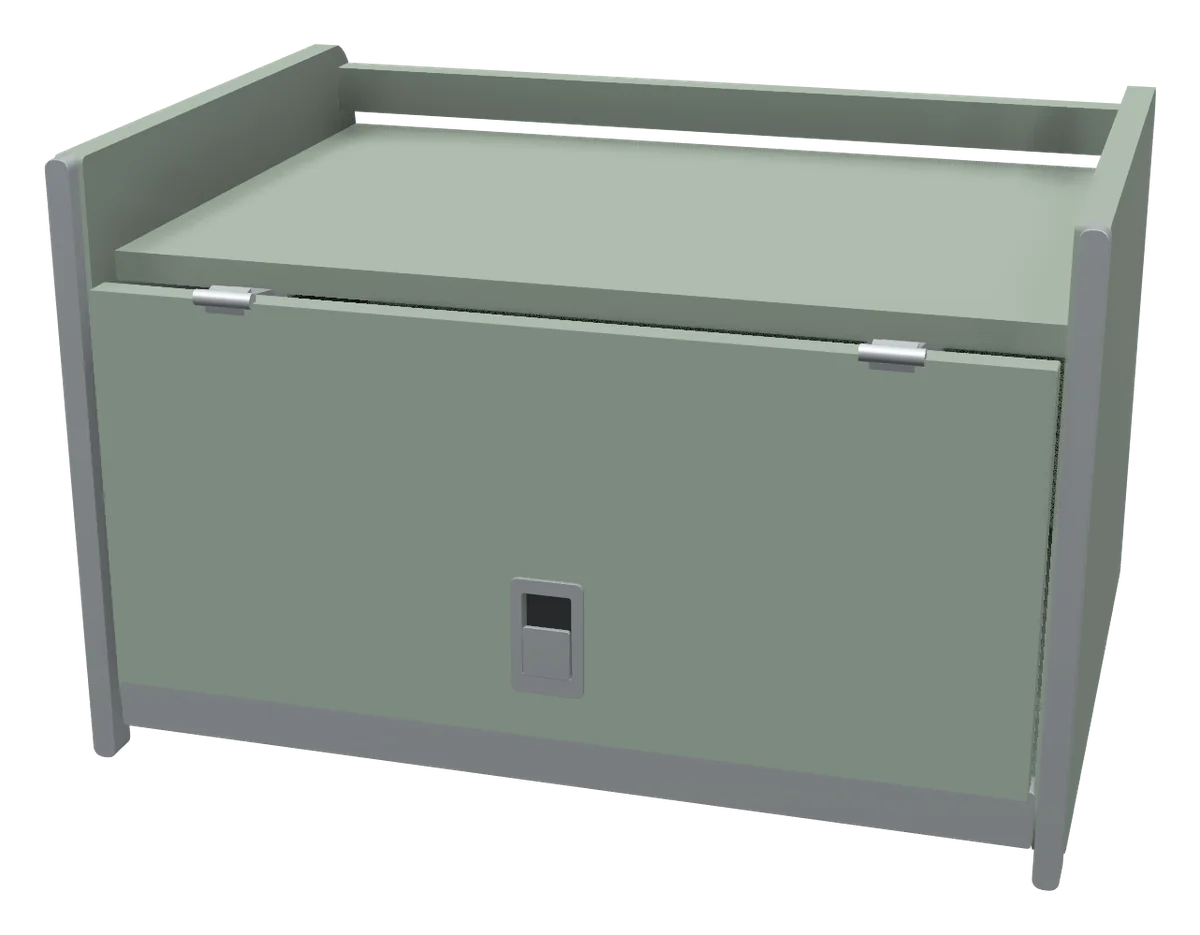

Plate cupboard
495 mm · Passenger side
Compact overhead unit sized to fit a standard Cookworks 17L microwave. Doubles as a plate cupboard when used without a microwave.
See the microwave shelf / plate cupboard page
Length
495 mm
Top locker (driver side)

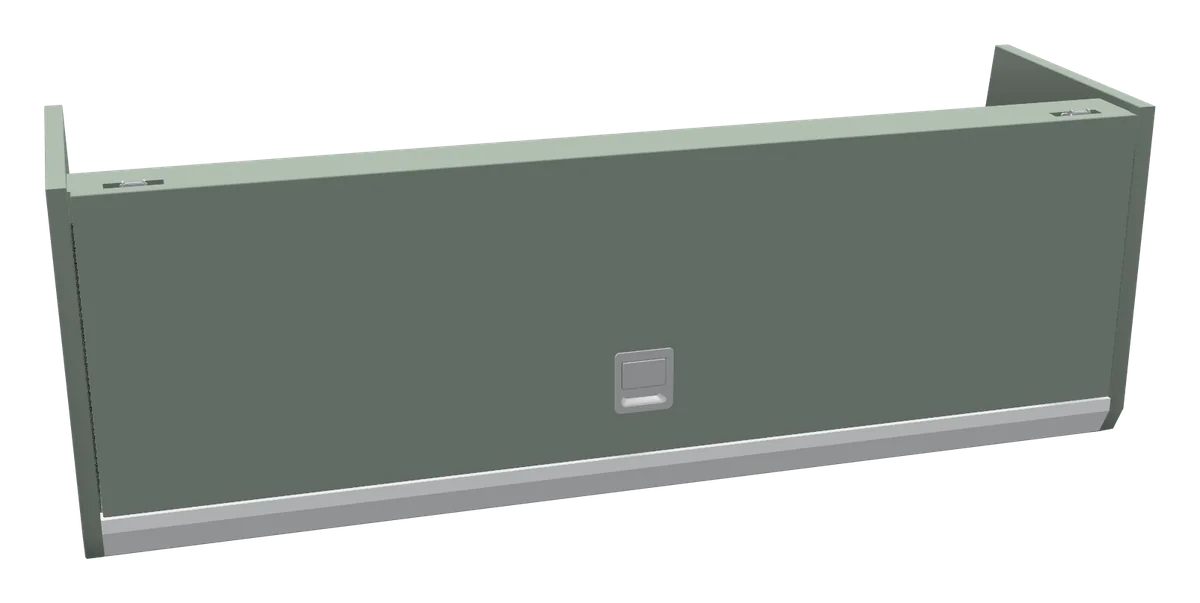

990 mm · Driver side
Overhead lockers scribed to fit your specific van: overhead storage cupboards that run along the side wall, above your bed or kitchen.
See the top lockers page
Length
990 mm
Length
500 to 2,000 mm, in 5 mm stepsThis layout: 990 mm
Truma panel
Fixed 250 mm Truma control panelThis layout: No
Lighting
LED lightingThis layout: LED lighting

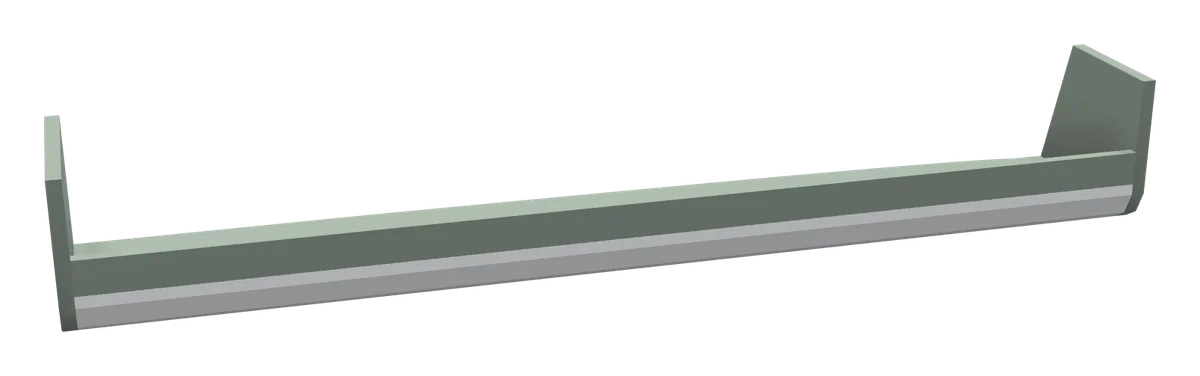

Top shelf
1,250 mm · Driver side
Slim overhead shelf scribed to fit your van. Mounts high on the wall to run the length of a bed or bench.
See the top shelf page
Length
1,250 mm
Length
One size here, with the shower inThis layout: 1,250 mm
Lighting
LED strip under the shelfThis layout: LED strip under the shelf

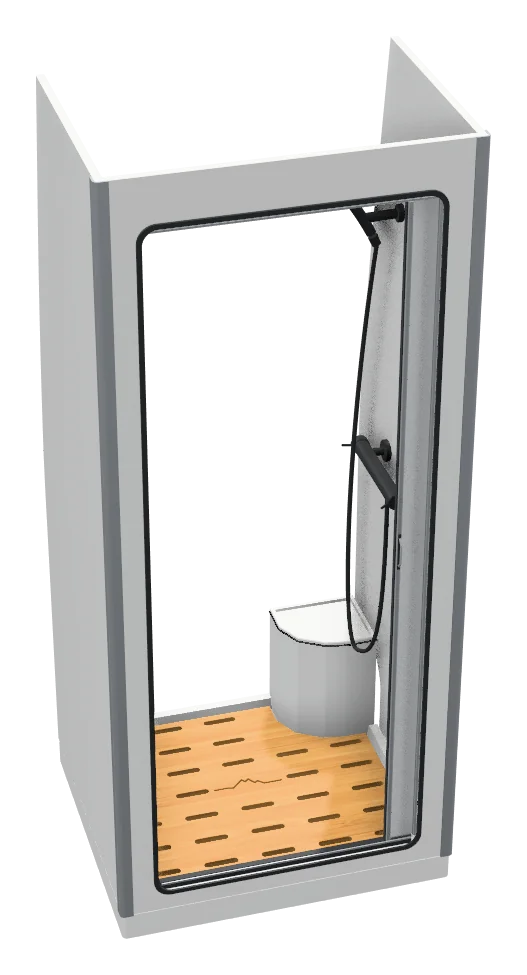

Shower cubicle
800 mm · Driver side
Self-contained shower and toilet cubicle (a shower pod) in waterproof white gloss finish. Roller door and trim included as standard.
See the shower / toilet cubicle page
Width
800 mm
Size
800 · 975 · 1,160 mmThis layout: 800 mm
Tray and insert
Shower tray · Bamboo insertThis layout: Shower tray · Bamboo insert
Fittings
Shower head, hose and mixerThis layout: Shower head, hose and mixer
Shower back wall
No back · White panel · Hex tilesThis layout: No back

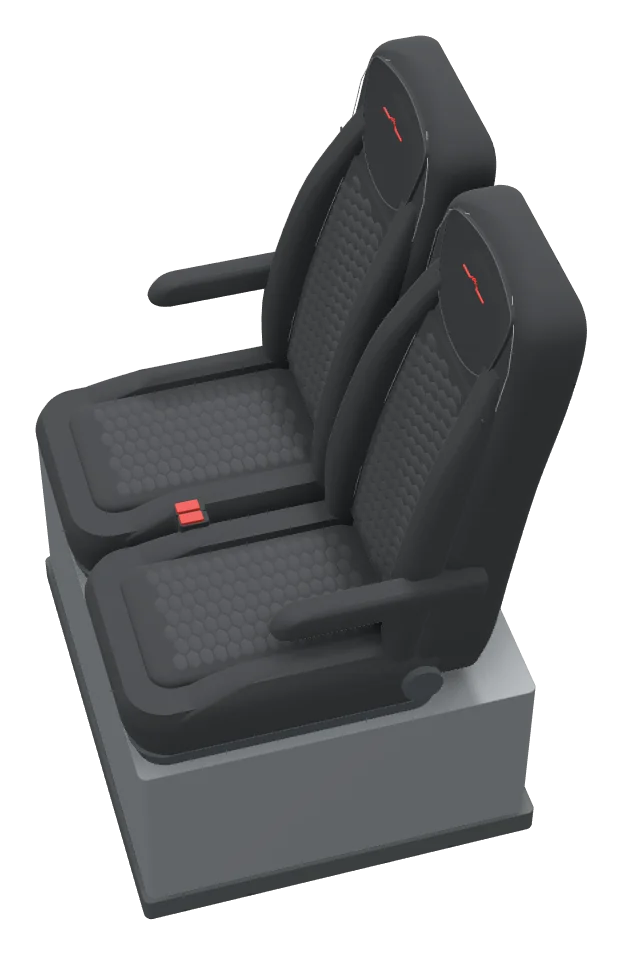

Travel seats
815 mm · Driver side
The travel seats show in the 3D but are sold separately.
Length
815 mm

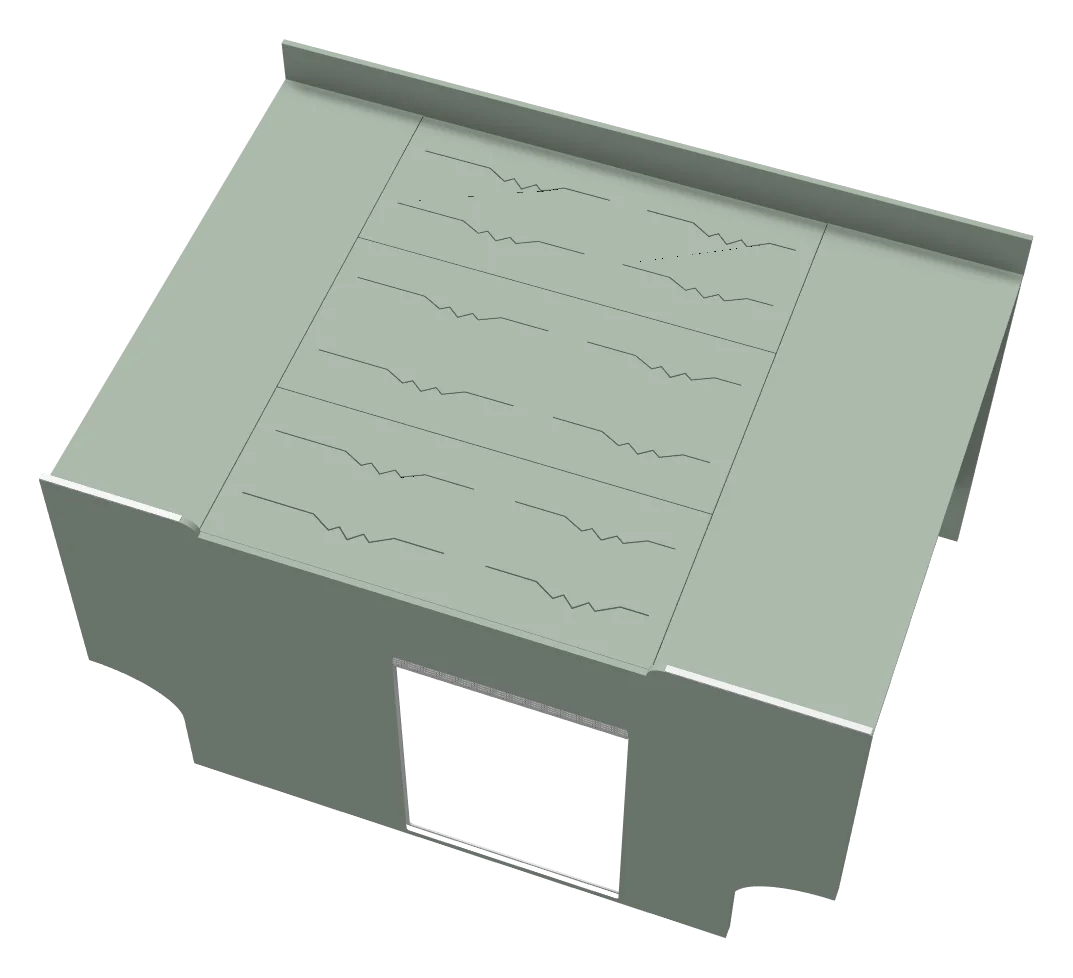

Bed box system · Full kit
1260 mm boxes, 350 driver · 450 passenger, 1015 high with pods + divider · Across the back
Complete rear bed platform system: everything you need for a full-width fixed bed setup.
See the bed box system page
Length
1,260 mm
Depth, driver side
350 mm
Depth, passenger side
450 mm
Height
1,015 mm
Product
Full kit · Garage bed boxesThis layout: Full kit
Box depth
350 · 450 mm, each sideThis layout: 350 driver · 450 passenger mm
Pods
With pods (1,015) · No pods (915)This layout: With pods (1,015)
Deep box
Driver side · Passenger sideThis layout: Passenger side

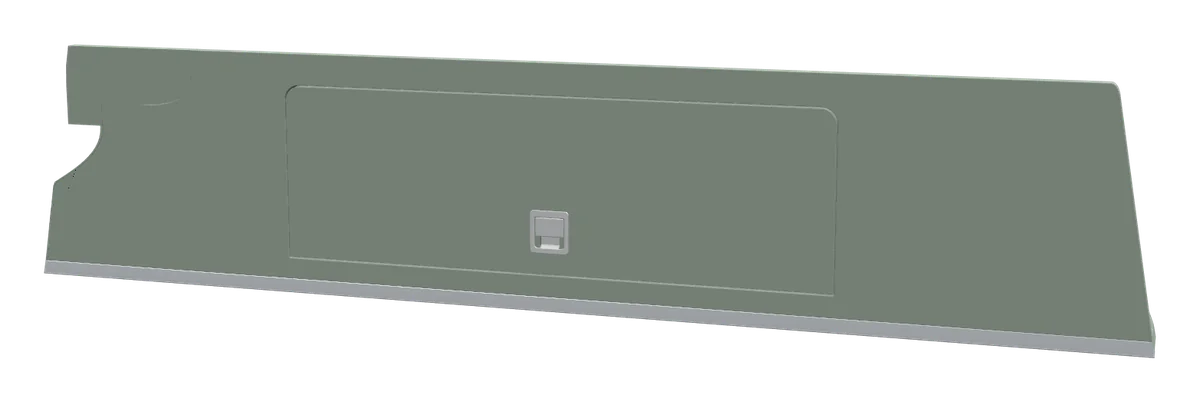

Overhead cab storage
Above the cab · With LED
A single-door cupboard that mounts above the cab area, making use of the space above the driver and passenger seats. Scribed to your van's cab profile.
See the overhead cab storage page
Lighting
LED lightingThis layout: LED lighting

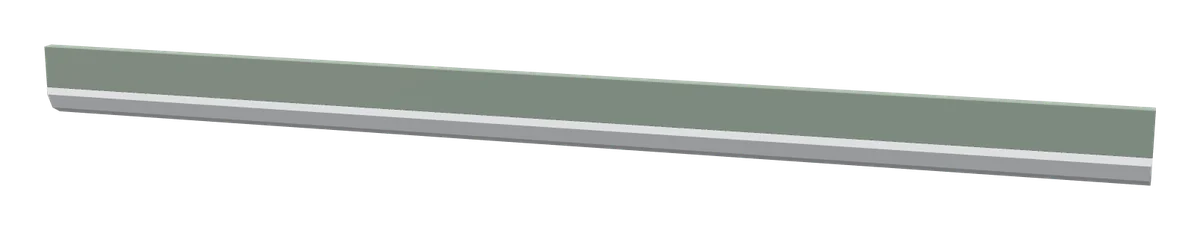

LED wiring harness
1,345 mm · Above the sliding door
Pre-made wiring loom with integrated LED strip light, designed to run above the sliding door. Simplifies the electrical installation by combining lighting and cable routing in one neat package.
See the wiring harness page
Length
1,345 mm
Length
1,355 mm standard, up to 2,000 mmThis layout: 1,345 mm
