Layout 1 · LWB

Mercedes Sprinter LWB campervan layout (2006-2018)

Mercedes Sprinter 2006-2018 · LWB, long wheelbase

This Mercedes Sprinter LWB campervan layout, for the 2006-2018 Sprinter, has a 1,160 mm shower, a 1,700 mm bench seat, the D6 kitchen, top lockers, a Truma panel locker and a bed box system across the back.

Fits the Mercedes Sprinter 2006-2018, long wheelbase.

Look round it, change the colours, move or swap any unit, then add it to your basket or book a free measure up with it.

What's in it

Every item in this layout, with its sizes and the options you can have. Pick the colours in the 3D above.

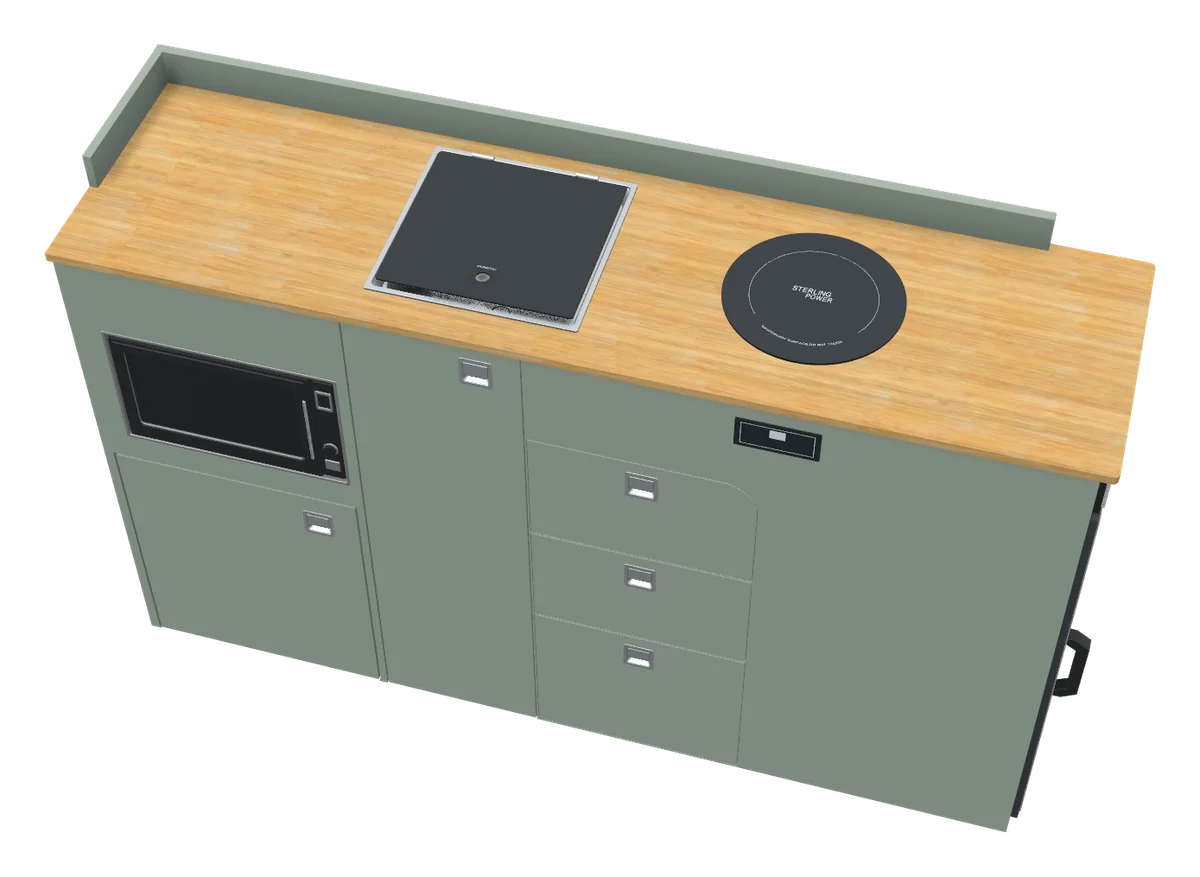

Kitchen D6
1,690 × 450 × 995 mm · Passenger side
Our flagship kitchen unit, designed and built specifically for large vans. All pods feature 18mm furniture-grade board, soft-close hinges, and come fully assembled, ready to bolt in.
See the kitchen pods page
Width
1,690 mm
Depth
450 mm
Height
995 mm
Kitchen
D1 XL · D3 XL · D6This layout: D6
Sink
Dometic bowl · Thetford black bowl · Smev 9222 · Liberty Max sink · No sinkThis layout: Dometic bowl
Hob
Single induction · Twin induction · Twin gas · No hobThis layout: Single induction
Extras
Microwave shelf · Spice rackThis layout: None fitted
Fridge space
90LThis layout: 90L

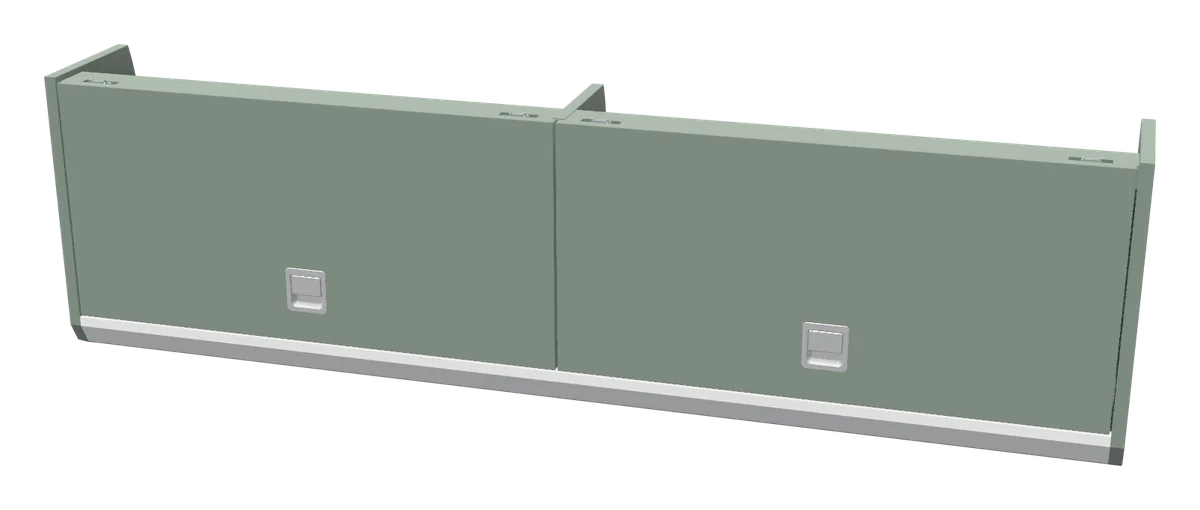

Top locker (rear)
1,370 mm · Passenger side
Overhead lockers scribed to fit your specific van: overhead storage cupboards that run along the side wall, above your bed or kitchen.
See the top lockers page
Length
1,370 mm
Length
500 to 2,000 mm, in 5 mm stepsThis layout: 1,370 mm
Truma panel
Fixed 250 mm Truma control panelThis layout: No
Lighting
LED lightingThis layout: LED lighting

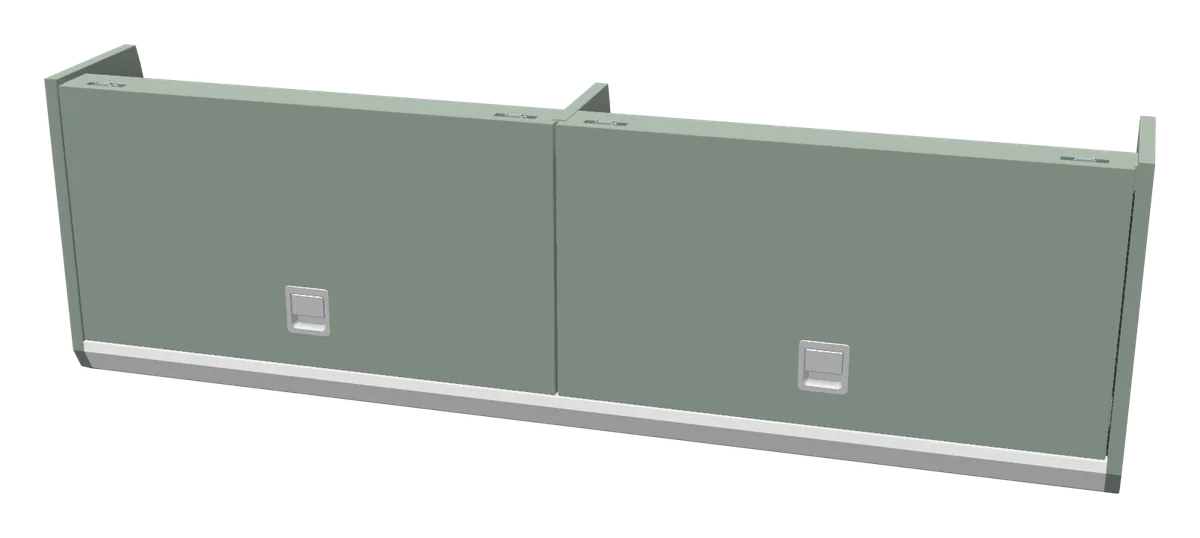

Top locker (middle)
1,250 mm · Passenger side
Overhead lockers scribed to fit your specific van: overhead storage cupboards that run along the side wall, above your bed or kitchen.
See the top lockers page
Length
1,250 mm
Length
500 to 2,000 mm, in 5 mm stepsThis layout: 1,250 mm
Truma panel
Fixed 250 mm Truma control panelThis layout: No
Lighting
LED lightingThis layout: LED lighting

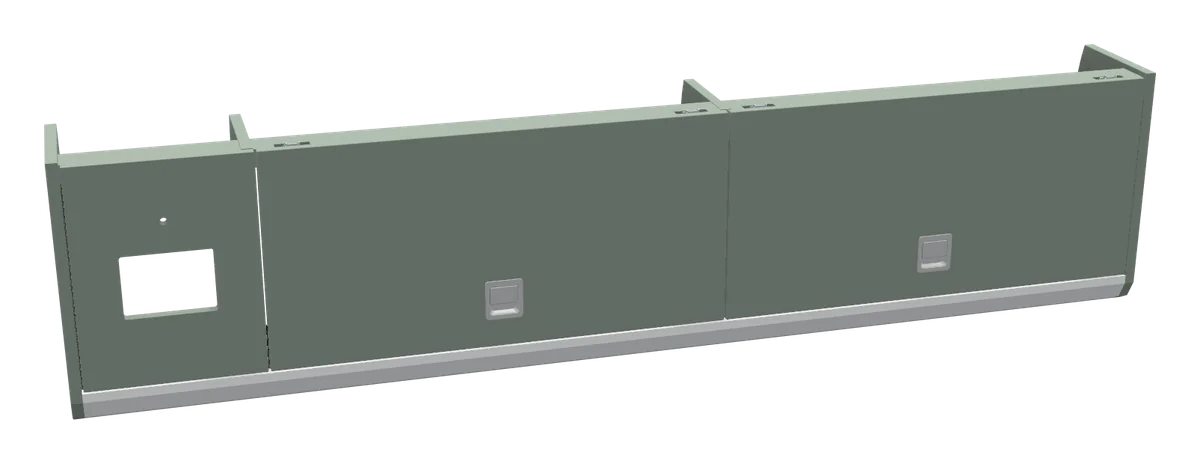

Truma panel locker
1,630 mm · Driver side
An overhead locker scribed to fit your specific van, with a fixed 250 mm Truma control panel at the front or back end.
See the top lockers page
Length
1,630 mm
Length
700 to 2,000 mm, in 5 mm stepsThis layout: 1,630 mm
Panel position
Front end (towards the cab) · Back end (towards the back doors)This layout: Front end (towards the cab)
Lighting
LED lightingThis layout: LED lighting

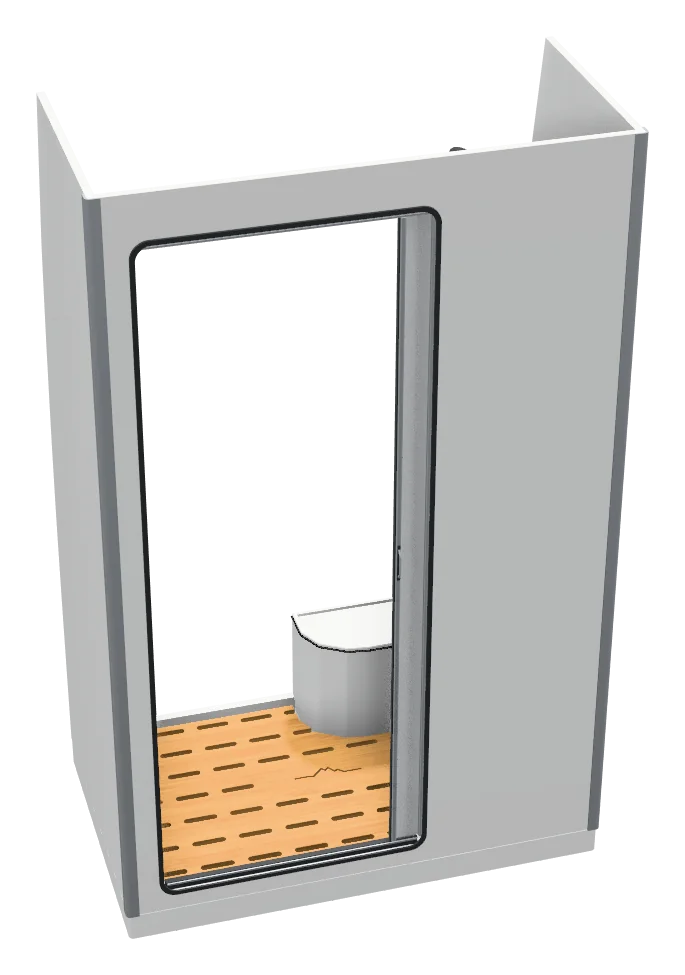

Shower cubicle
1,160 mm · Driver side
Self-contained shower and toilet cubicle (a shower pod) in waterproof white gloss finish. Roller door and trim included as standard.
See the shower / toilet cubicle page
Width
1,160 mm
Size
800 · 975 · 1,160 mmThis layout: 1,160 mm
Tray and insert
Shower tray · Bamboo insertThis layout: Shower tray · Bamboo insert
Fittings
Shower head, hose and mixerThis layout: Shower head, hose and mixer
Shower back wall
No back · White panel · Hex tilesThis layout: No back

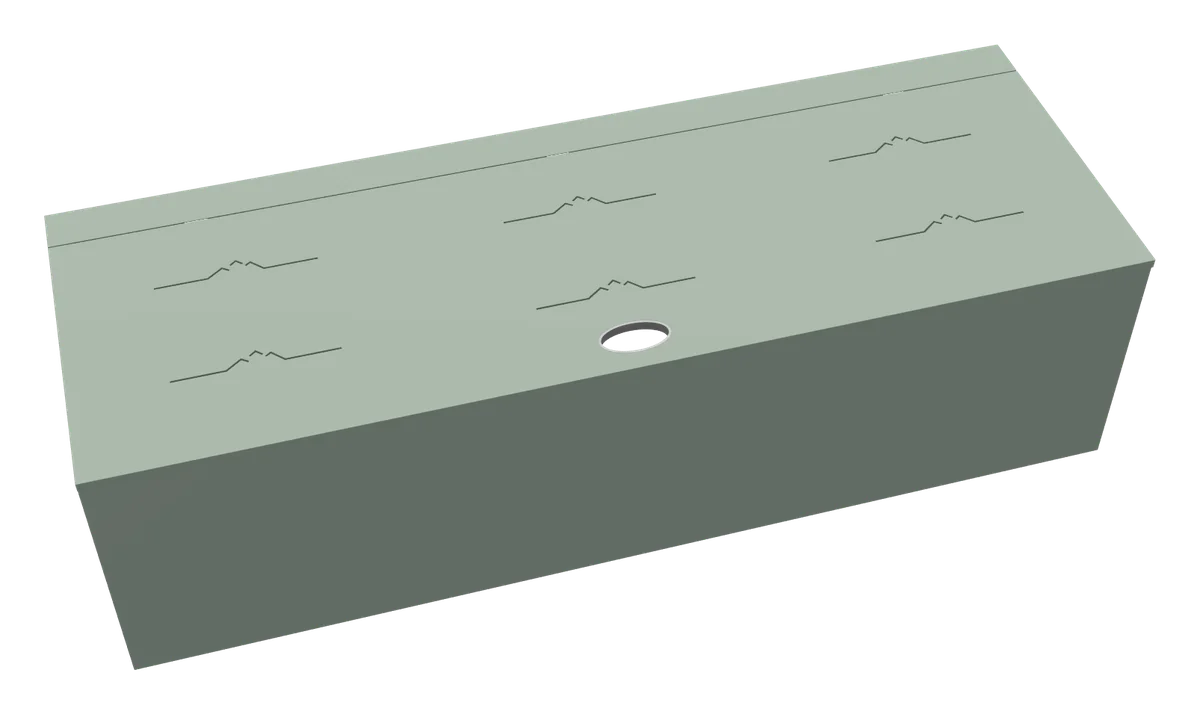

Bench seat
1,700 mm · Driver side
Versatile seating unit made to your length: chosen length × 600mm deep × 465mm high. Solid construction with 18mm board.
See the bench seat page
Length
1,700 mm
Length
500 to 3,900 mm, in 5 mm stepsThis layout: 1,700 mm

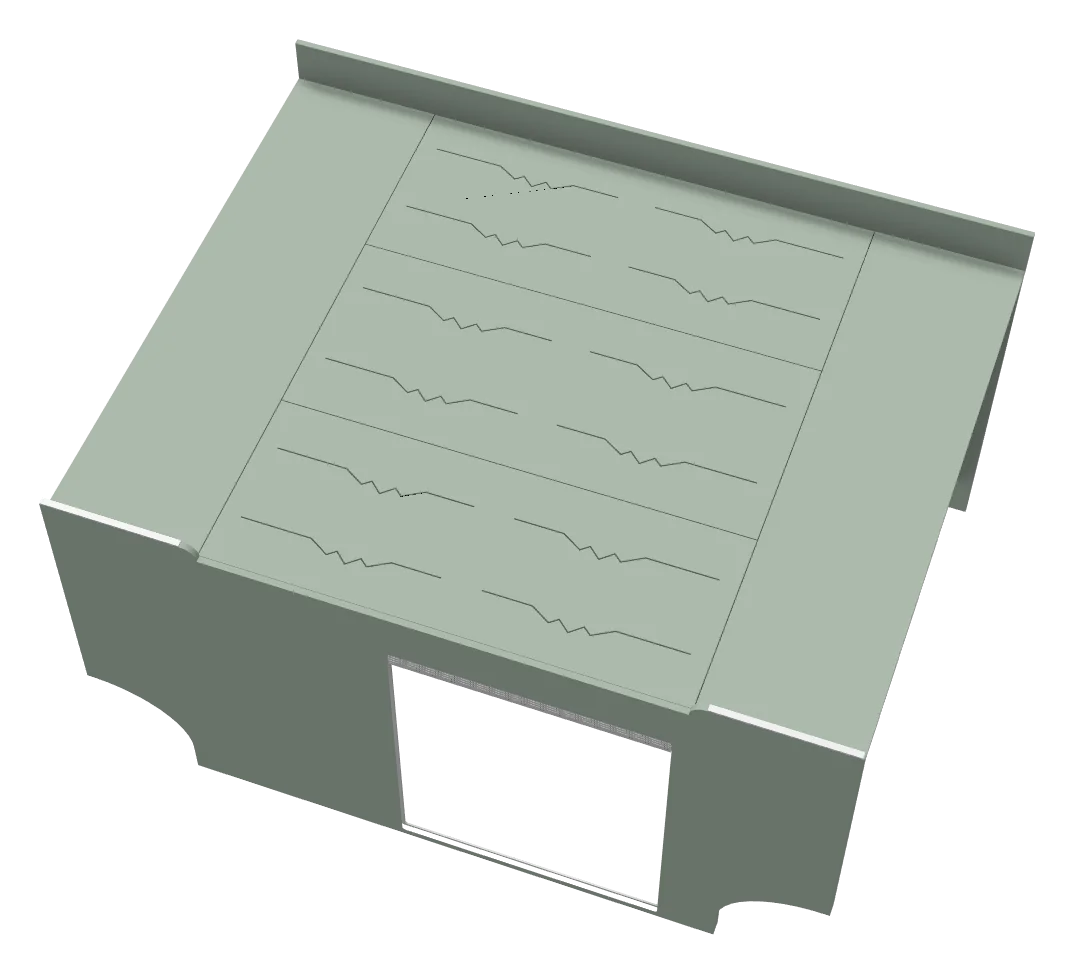

Bed box system · Full kit
1350 mm boxes, 350 deep, 915 high without pods + divider · Across the back
Complete rear bed platform system: everything you need for a full-width fixed bed setup.
See the bed box system page
Length
1,350 mm
Depth, driver side
350 mm
Depth, passenger side
350 mm
Height
915 mm
Product
Full kit · Garage bed boxesThis layout: Full kit
Box length
1,260 · 1,350 mmThis layout: 1,350 mm
Box depth
350 · 450 mm, each sideThis layout: 350 driver · 350 passenger mm
Height
915 mm high: the Mercedes Sprinter 2006-2018 LWB takes the 915 boxThis layout: 915 mm
Deep box
Driver side · Passenger sideThis layout: Neither (both the same)

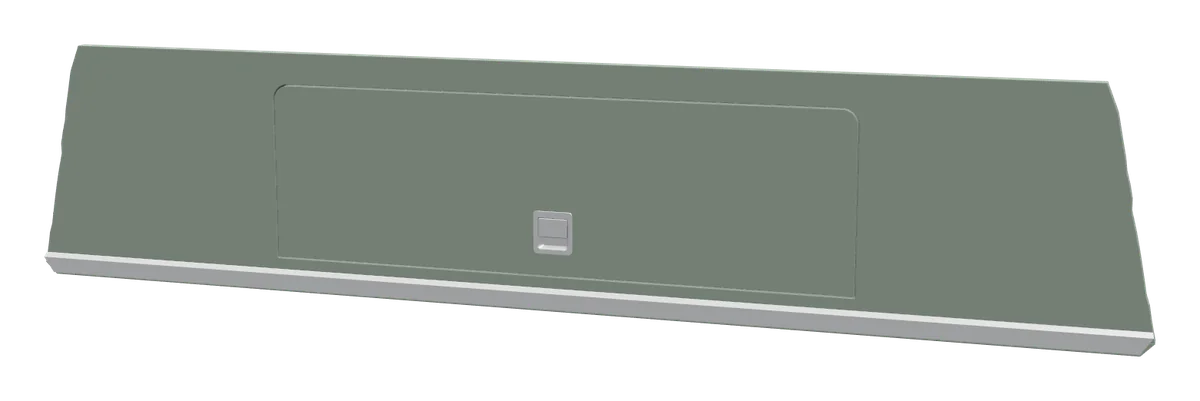

Overhead cab storage
Above the cab · With LED
A single-door cupboard that mounts above the cab area, making use of the space above the driver and passenger seats. Scribed to your van's cab profile.
See the overhead cab storage page
Lighting
LED lightingThis layout: LED lighting

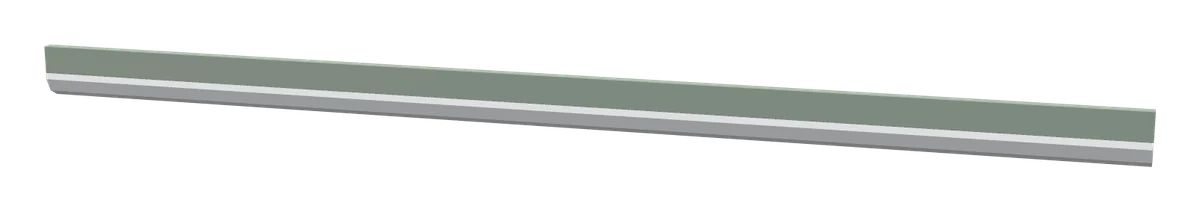

LED wiring harness
1,550 mm · Above the sliding door
Pre-made wiring loom with integrated LED strip light, designed to run above the sliding door. Simplifies the electrical installation by combining lighting and cable routing in one neat package.
See the wiring harness page
Length
1,550 mm
Length
1,550 mm standard, up to 2,000 mmThis layout: 1,550 mm
