VW Crafter MWB campervan layout (2006-2017)

VW Crafter 2006-2017 · MWB, medium wheelbase

This VW Crafter MWB campervan layout, for the 2006-2017 Crafter, has the D1 50L kitchen, a 1,650 mm bench seat, top lockers, an LED wiring harness and a bed box system across the back.

Fits the VW Crafter 2006-2017, medium wheelbase.

Look round it, change the colours, move or swap any unit, then add it to your basket or book a free measure up with it.

What's in it

Every item in this layout, with its sizes and the options you can have. Pick the colours in the 3D above.

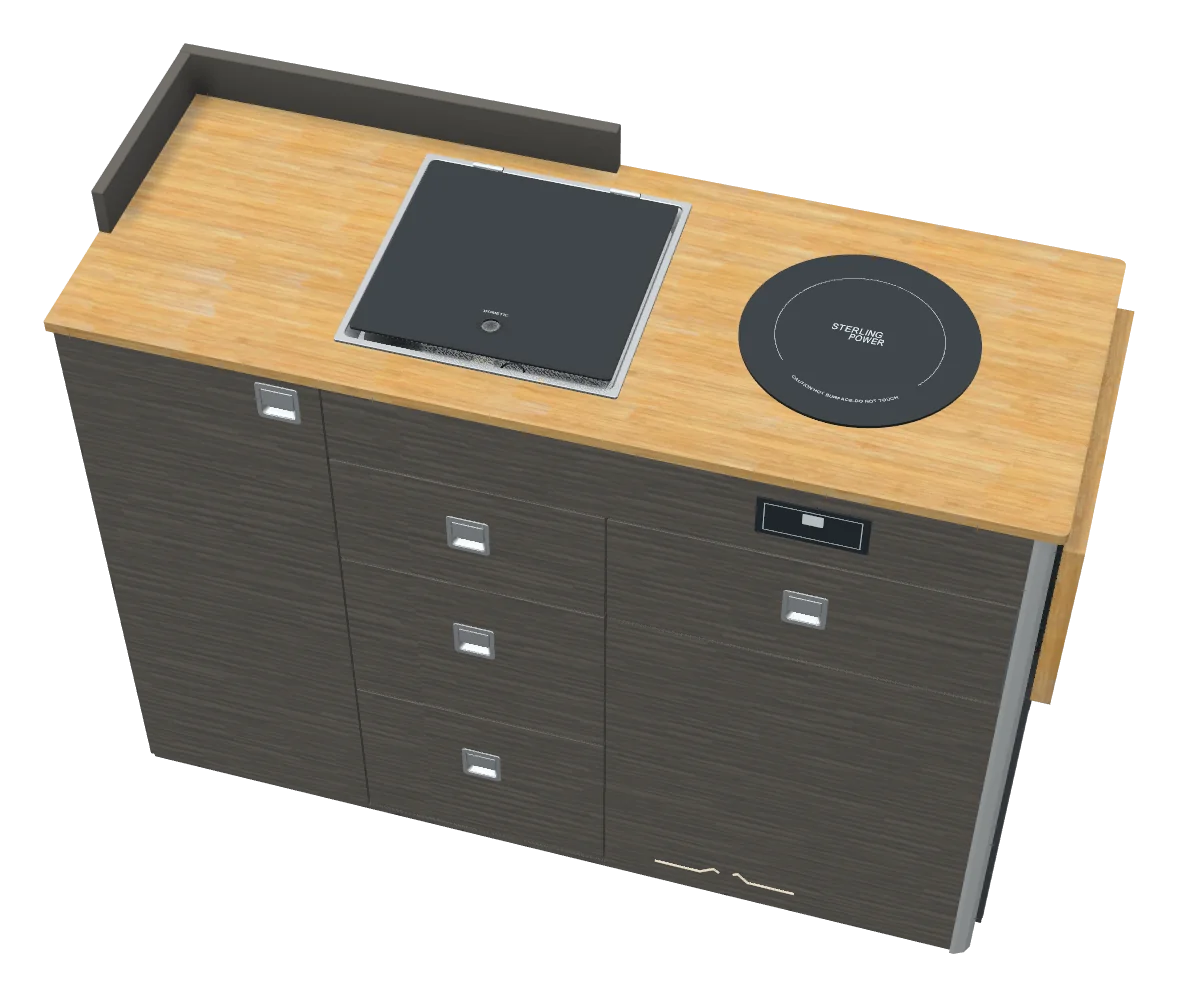

Kitchen D1 50L
1,220 × 450 × 900 mm · Passenger side
Our flagship kitchen unit, designed and built specifically for large vans. All pods feature 18mm furniture-grade board, soft-close hinges, and come fully assembled, ready to bolt in.
See the kitchen pods page
Width
1,220 mm
Depth
450 mm
Height
900 mm
Kitchen
D1 Mini · D1 · D3This layout: D1
Sink
Dometic bowl · Thetford black bowl · Smev 9222 · No sinkThis layout: Dometic bowl
Hob
Single induction · Twin gas · No hobThis layout: Single induction
Fridge space
50L · 90L · No fridgeThis layout: 50L

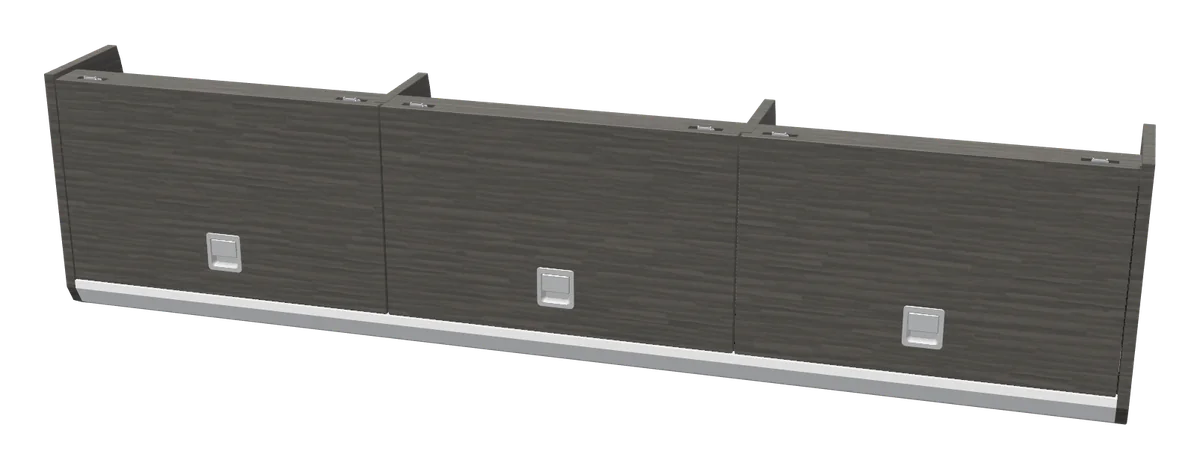

Top locker (passenger side)
1,600 mm · Passenger side
Overhead lockers scribed to fit your specific van: overhead storage cupboards that run along the side wall, above your bed or kitchen.
See the top lockers page
Length
1,600 mm
Length
500 to 2,000 mm, in 5 mm stepsThis layout: 1,600 mm
Truma panel
Fixed 250 mm Truma control panelThis layout: No
Lighting
LED lightingThis layout: LED lighting

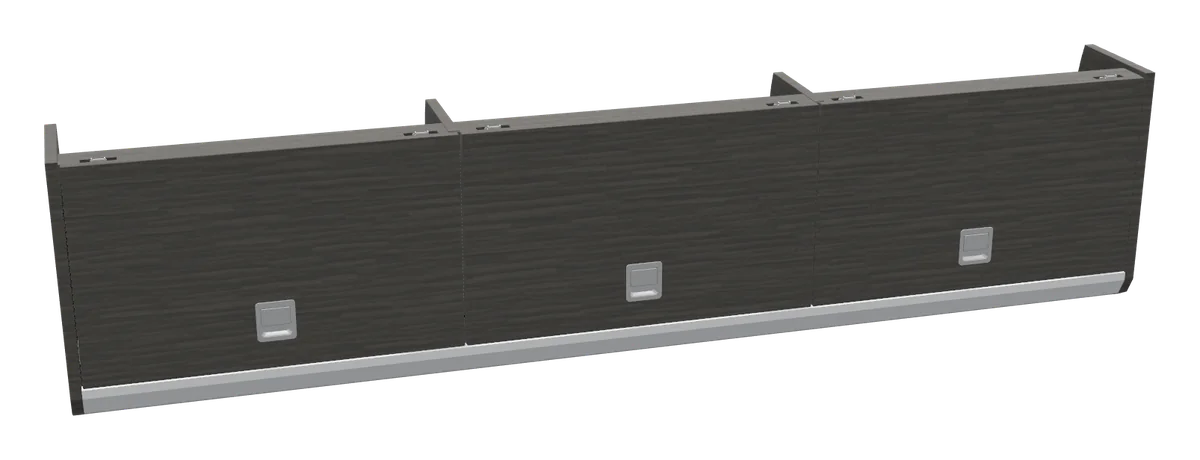

Top locker (driver side)
1,650 mm · Driver side
Overhead lockers scribed to fit your specific van: overhead storage cupboards that run along the side wall, above your bed or kitchen.
See the top lockers page
Length
1,650 mm
Length
500 to 2,000 mm, in 5 mm stepsThis layout: 1,650 mm
Truma panel
Fixed 250 mm Truma control panelThis layout: No
Lighting
LED lightingThis layout: LED lighting

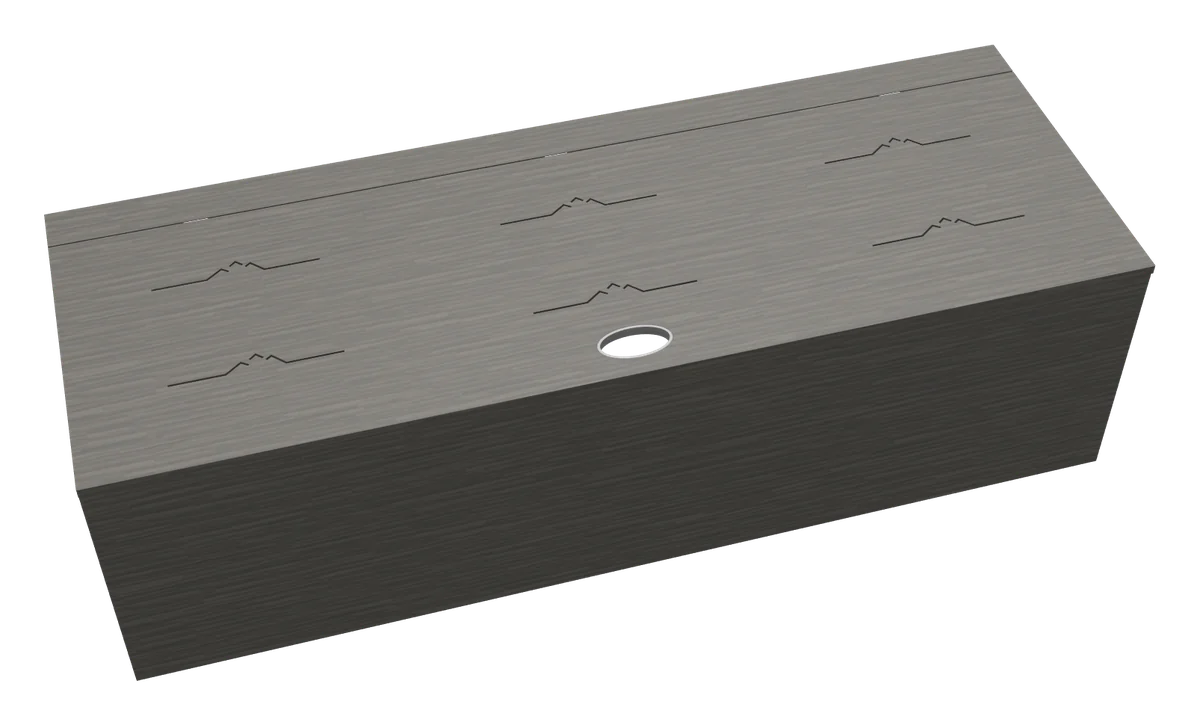

Bench seat
1,650 mm · Driver side
Versatile seating unit made to your length: chosen length × 600mm deep × 465mm high. Solid construction with 18mm board.
See the bench seat page
Length
1,650 mm
Length
500 to 3,900 mm, in 5 mm stepsThis layout: 1,650 mm

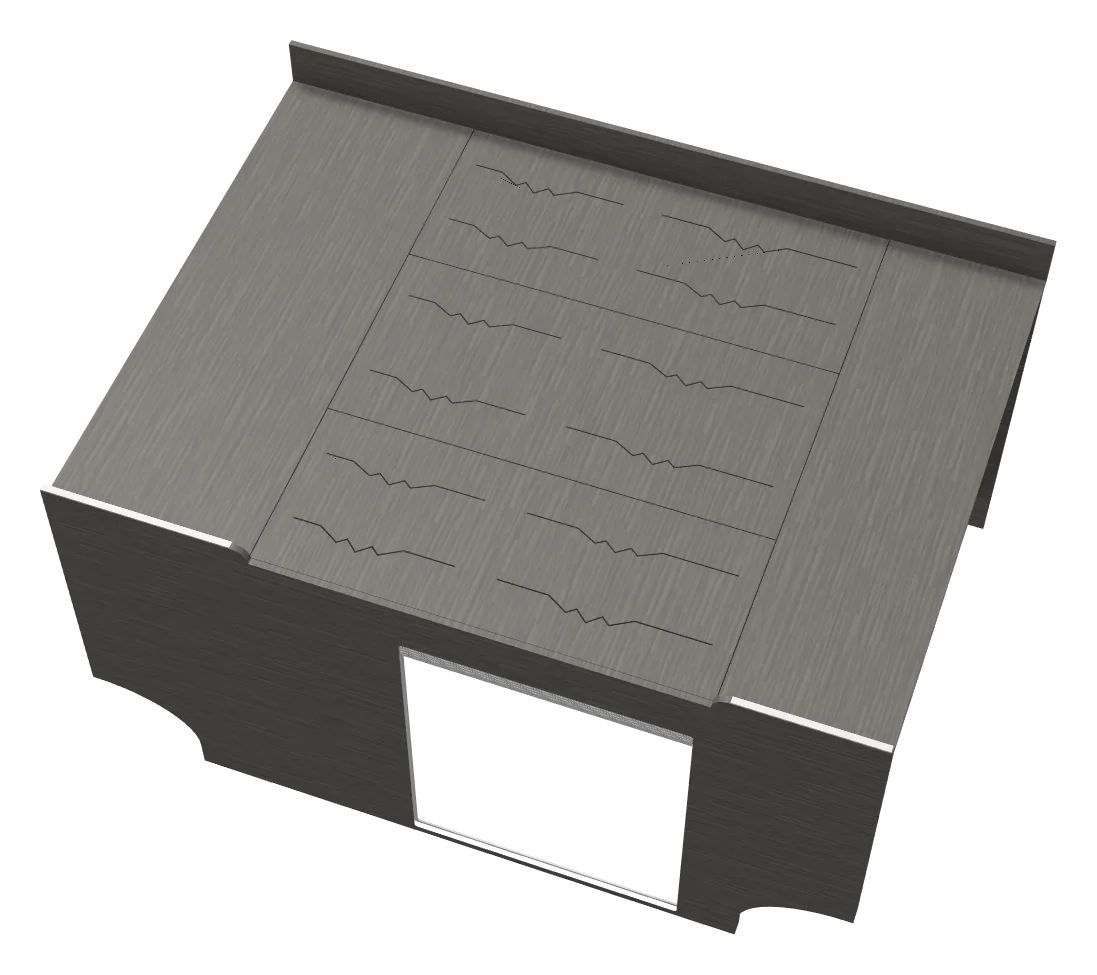

Bed box system · Full kit
1260 mm boxes, 450 driver · 350 passenger, 915 high without pods + divider · Across the back
Complete rear bed platform system: everything you need for a full-width fixed bed setup.
See the bed box system page
Length
1,260 mm
Depth, driver side
450 mm
Depth, passenger side
350 mm
Height
915 mm
Product
Full kit · Garage bed boxesThis layout: Full kit
Box length
1,260 · 1,350 mmThis layout: 1,260 mm
Box depth
350 · 450 mm, each sideThis layout: 450 driver · 350 passenger mm
Height
915 mm high: the VW Crafter 2006-2017 MWB takes the 915 boxThis layout: 915 mm
Deep box
Driver side · Passenger sideThis layout: Driver side

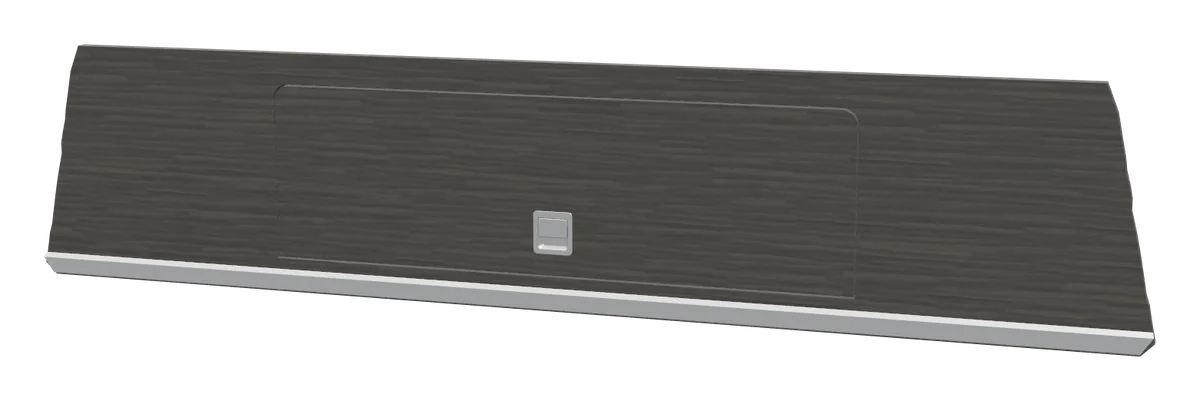

Overhead cab storage
Above the cab · With LED
A single-door cupboard that mounts above the cab area, making use of the space above the driver and passenger seats. Scribed to your van's cab profile.
See the overhead cab storage page
Lighting
LED lightingThis layout: LED lighting

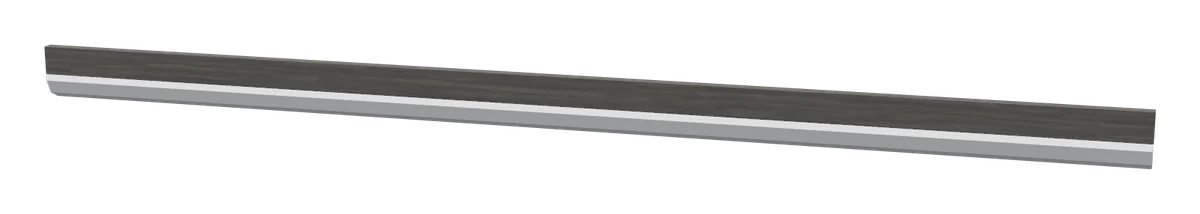

LED wiring harness
1,500 mm · Above the sliding door
Pre-made wiring loom with integrated LED strip light, designed to run above the sliding door. Simplifies the electrical installation by combining lighting and cable routing in one neat package.
See the wiring harness page
Length
1,500 mm
Length
1,500 mm standard, up to 2,000 mmThis layout: 1,500 mm
